Device layout
Which device do you want help with?
Change device

Device layout

This article provides an overview of the device layout.

INSTRUCTIONS & INFO

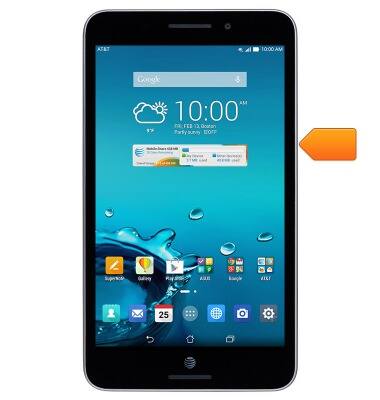

  1. Press the Power/Lock key to lock or unlock the screen. Press and hold to turn on the device or access power, airplane mode, and sound options.
    device 2908/1500165.jpg

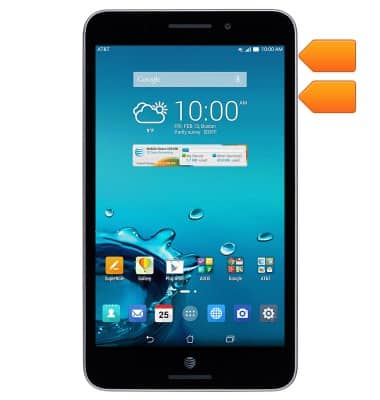

  2. Press the Volume keys to adjust the volume.
    device 2908/1500166.jpg
  3. Press the Recent Apps key to view a list of recently opened apps.
    device 2908/1500167.jpg

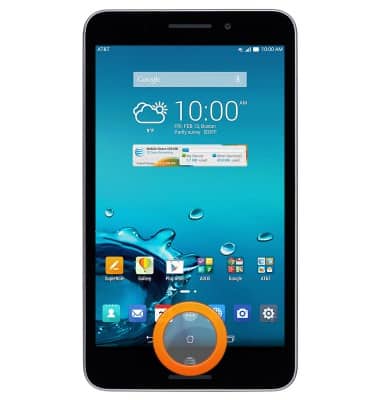

  4. Press the Home key to return to the home screen.
    device 2908/1502207.jpg

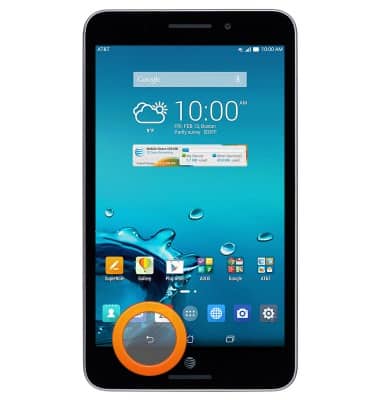

  5. Press the Back key to return to the previous screen.
    device 2908/1502208.jpg
  6. The 3.5mm Headphone jack is located at the bottom right side of the device.
    device 2908/1502209.jpg

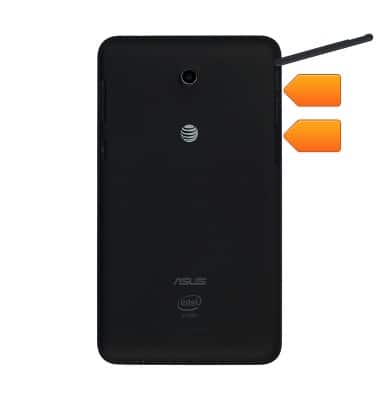

  7. The microSIM/microSD card slot is located on the side of the device.
    Note: To access the SIM and CD card slots, open the card compartment first.
    device 2908/1502210.jpg

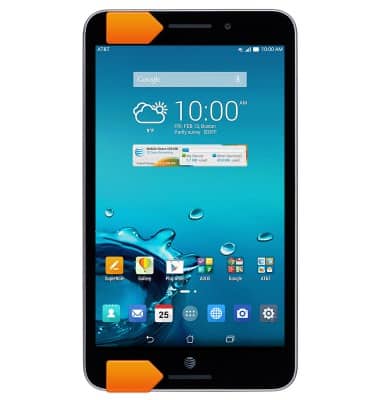

  8. The Dual front stereo speakers are located at the top and the bottom of the device.
    device 2908/1502211.jpg

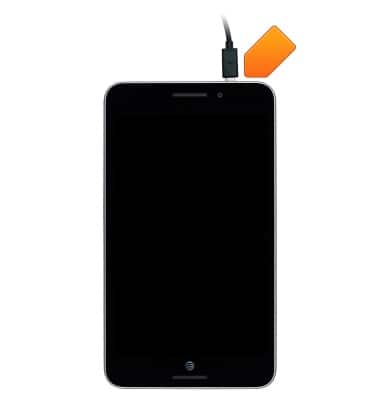

  9. The microUSB/Charging port is located on the top of the device.
    device 2908/1502212.jpg
  10. The Rear camera is located on the back of the device.
    device 2908/1502213.jpg

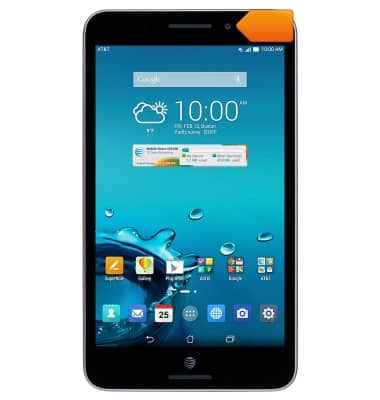

  11. The Front camera is located on the front of the device.
    device 2908/1502214.jpg
